Electro Holding Magnets Lux'On

Discover our range of permanent magnets

The Electro holding magnet Permanent works as follow:

  • The holding of the polar plate is ensured by an integrated permanent magnet
  • The unlocking of the polar plate is obtained by an instantaneous emission of current in the magnet

The Lux'On will cover a huge rage and meet your needs for locking: automatic doors, secure drawers, or fire doors..

Luxalp delivers from unit to large series.

Our electromagnets can be adapted to your needs: see our customized solutions.

Reference Dimensions Ø x Height (mm) Holding strength (N) Tension (V) Power (W) Output connectors Protection index (IP)

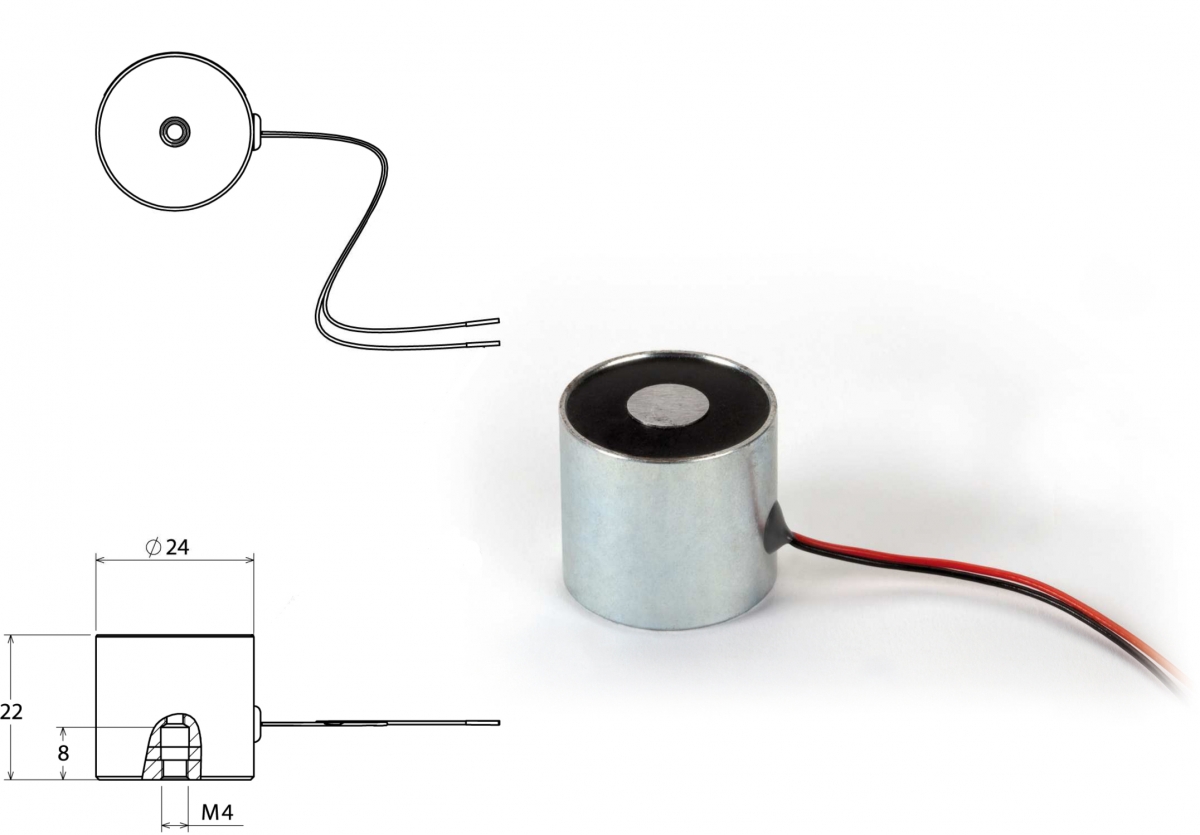

  24VE12A 24 x 22 45 12 < 3.5 Horizontal wires IP 42
  24VE24A 24 x 22 45 24 < 3.5 Horizontal wires IP 42

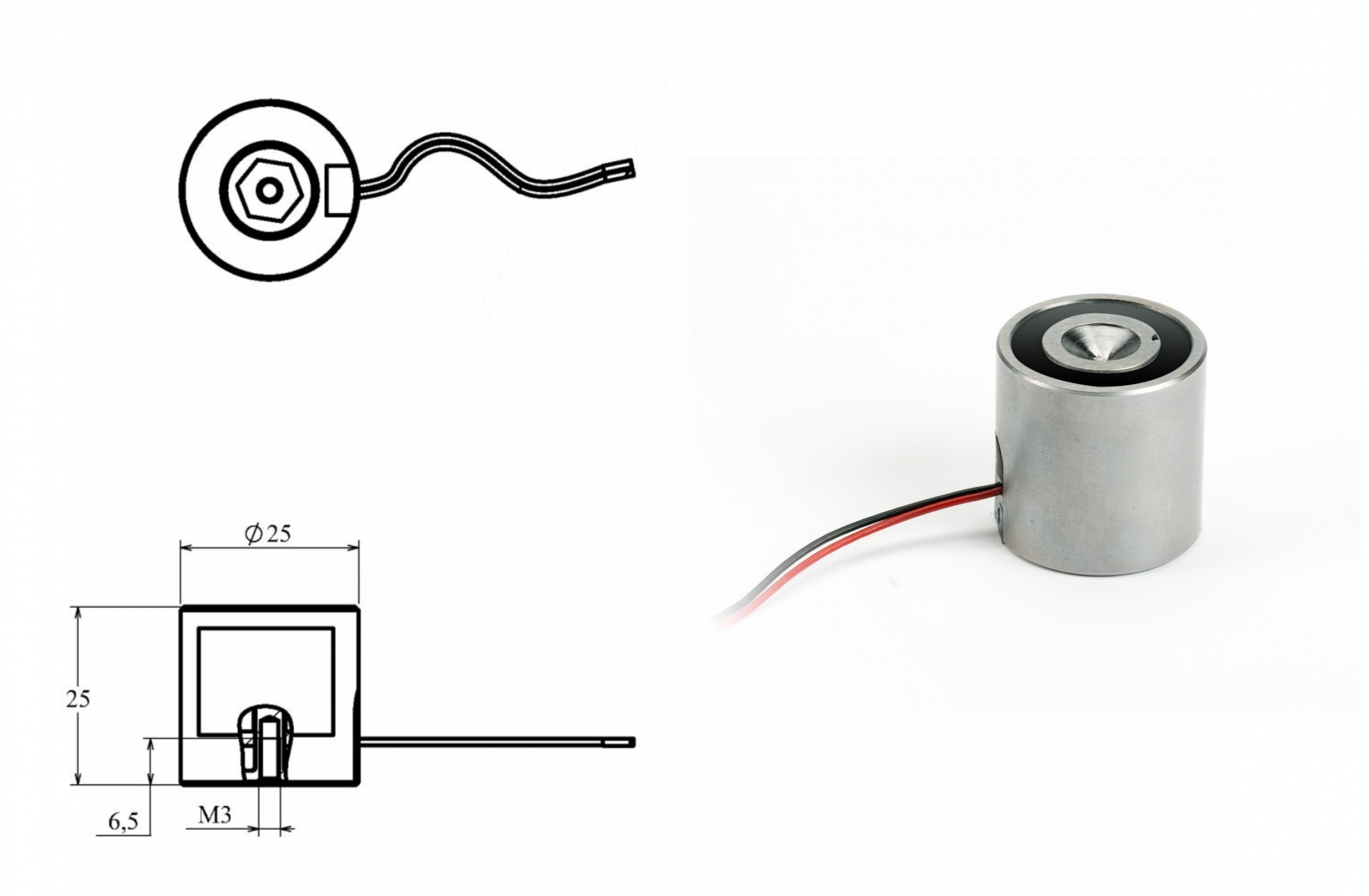

  25VE12A 25 x 25 60 12 < 3.5 Horizontal wires IP 65

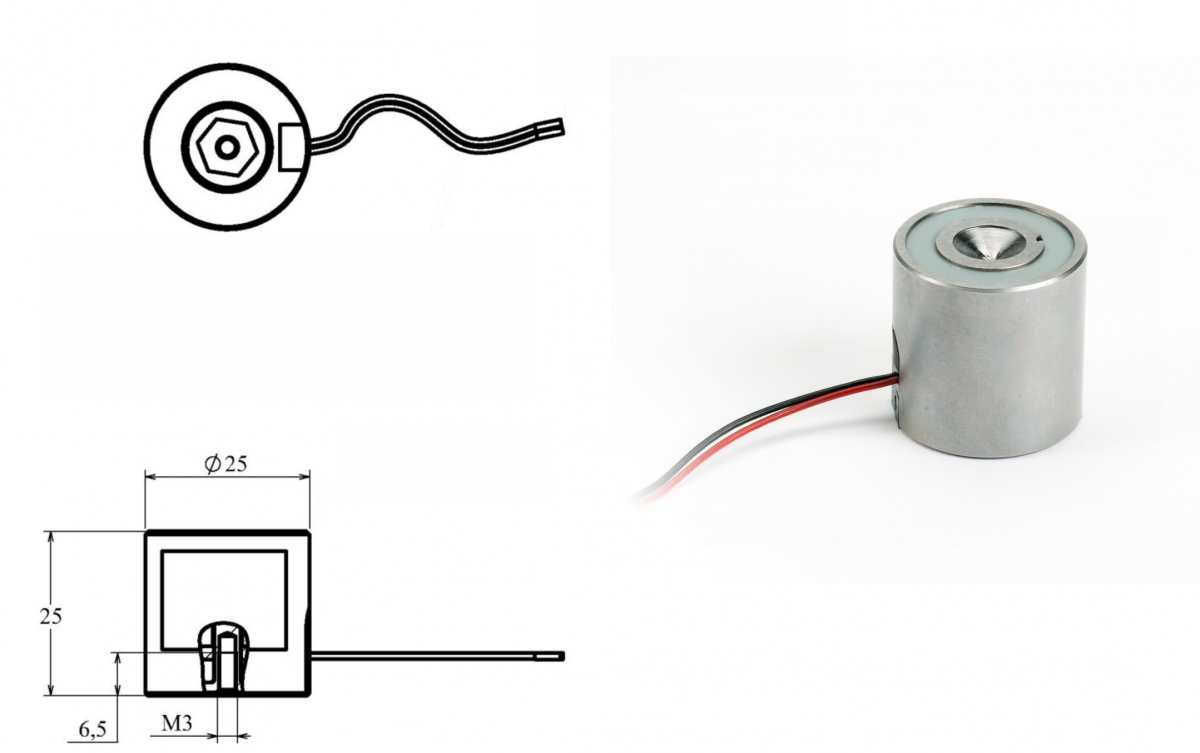

  25VE24A 25 x 25 60 24 < 3.5 Horizontal wires IP 65
  30VE12A 30 x 32 120 12 < 3.5 Horizontal wires IP 40

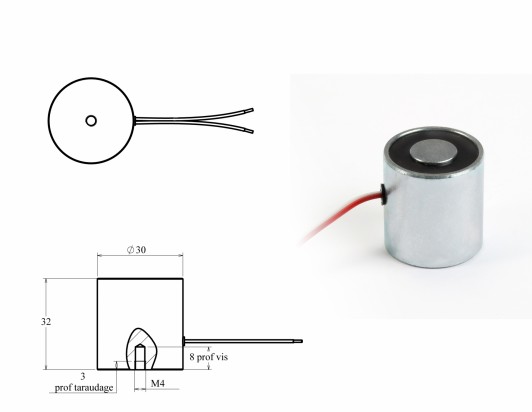

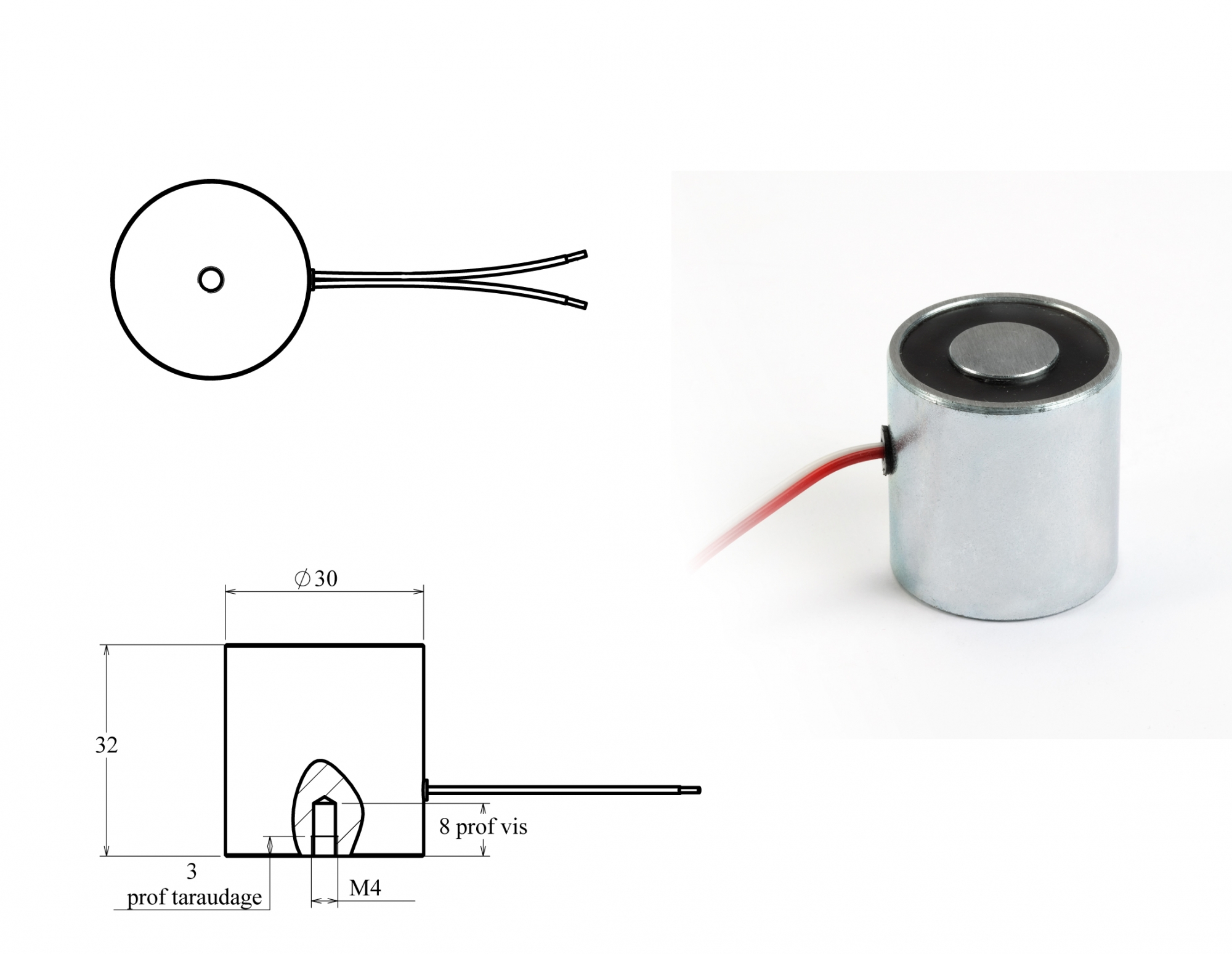

  30VE24A 30 x 32 120 24 < 3.5 Horizontal wires IP 40

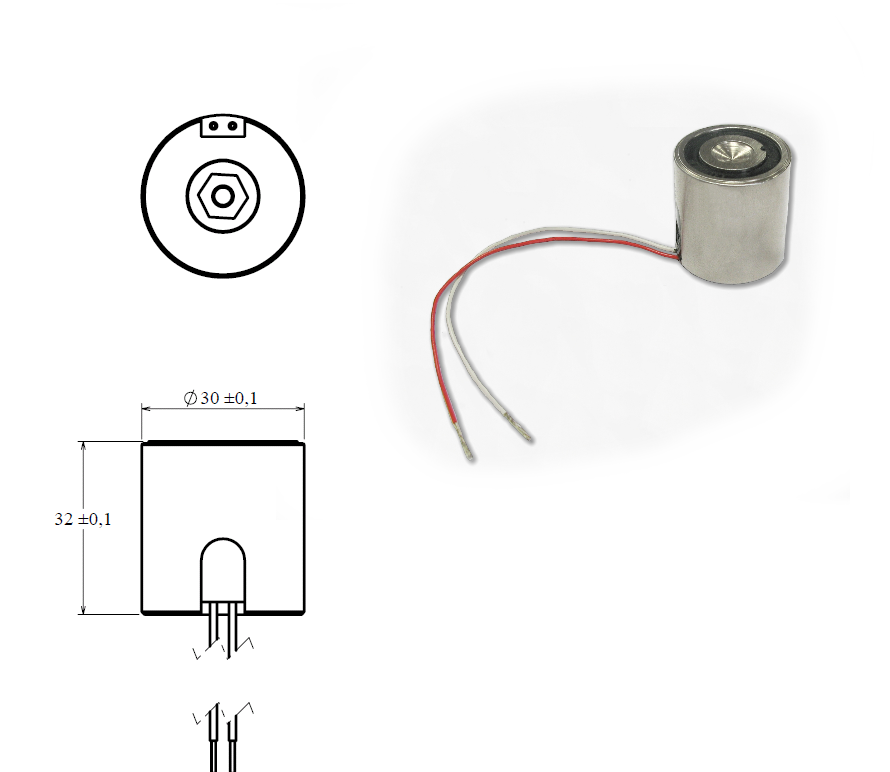

  30VE12B 30 x 32 170 12 < 3.5 H or V wires IP 65
  30VE24B 30 x 32 170 24 < 3.5 H or V wires IP 65

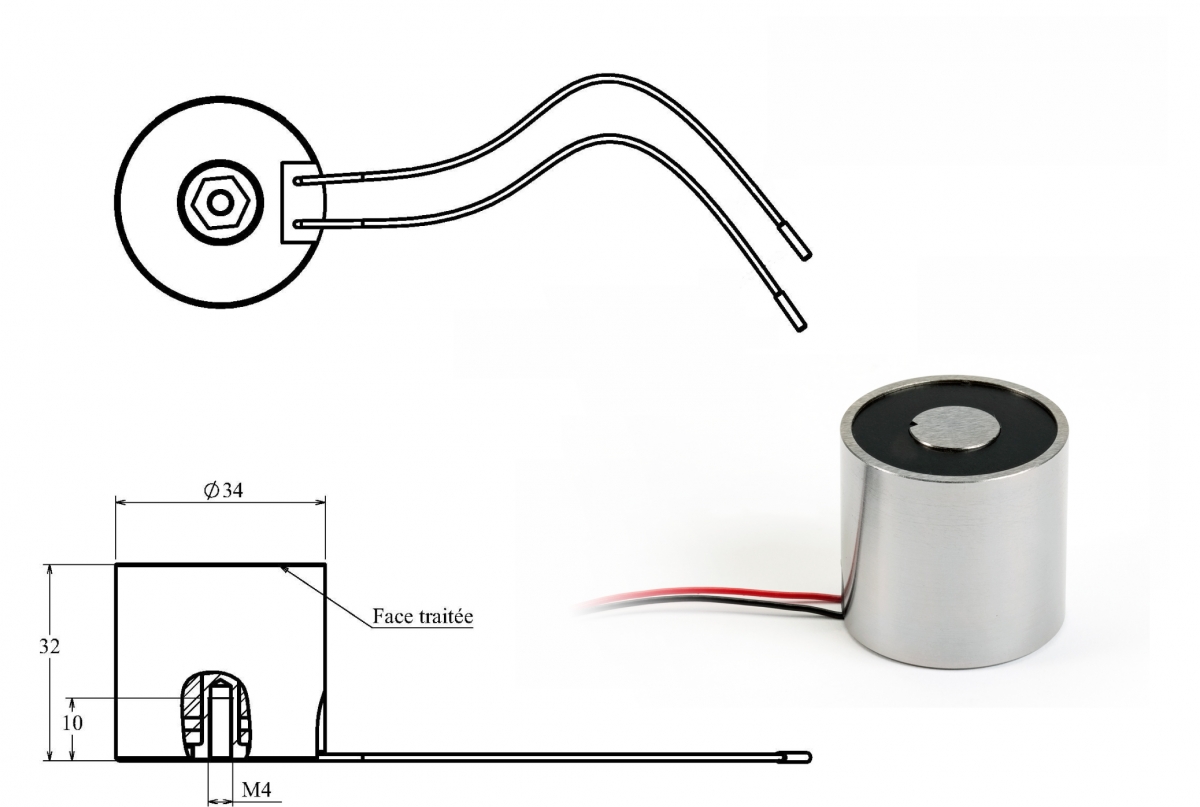

  34VE12A 34 x 32 120 12 < 3.5 Horizontal wires IP 65
  34VE24A 34 x 32 120 24 < 3.5 Horizontal wires IP 65
  75VE12A 75 x 65 1800 24 < 20.5 Horizontal wire IP 40

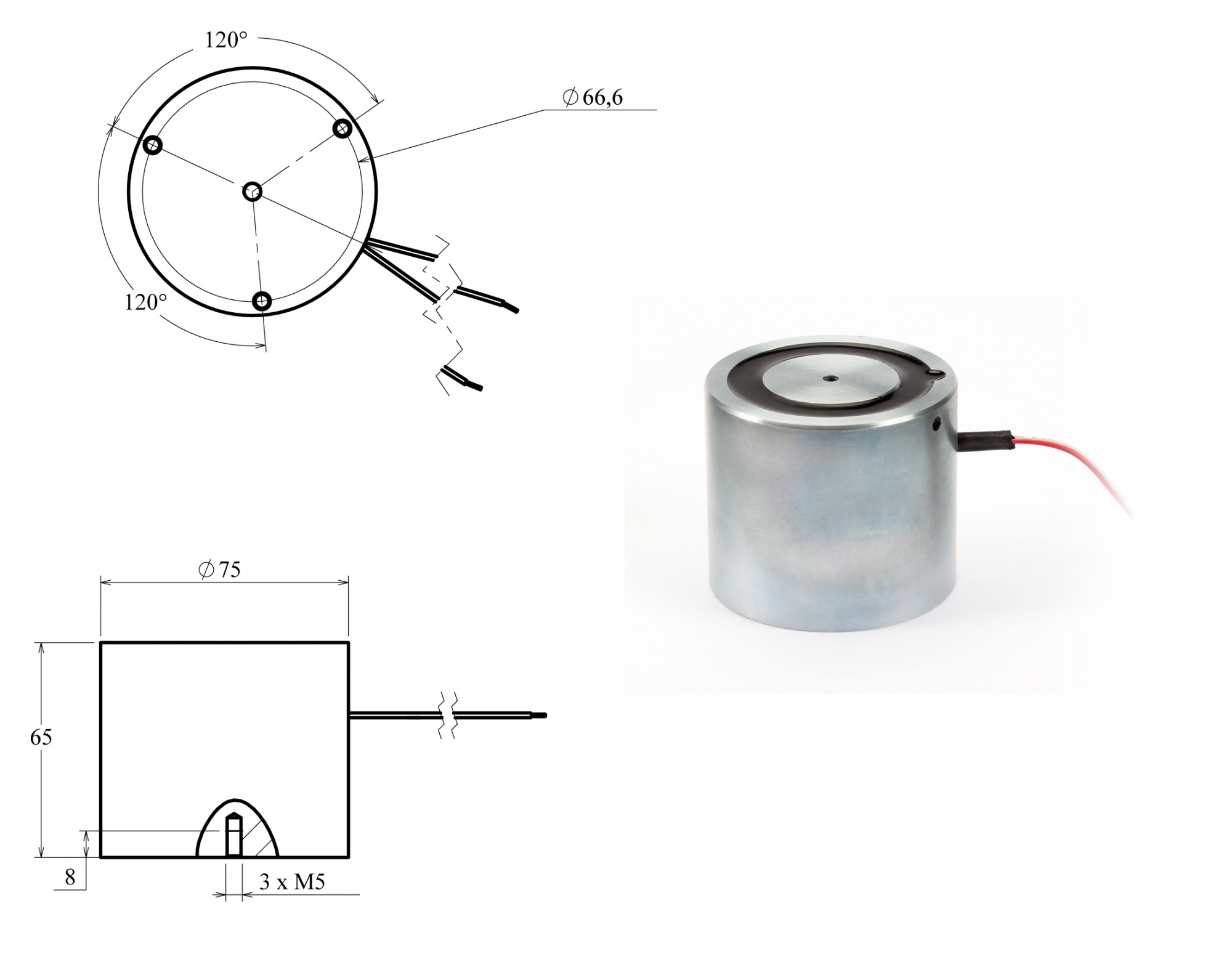

  75VE24A 75 x 65 1800 24 < 20.5 Horizontal wire IP 40
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
 Technical sheet  Contact LUXALP
Discover our customized solutions!
