Polar plates
Discover our range of polar plates
The optimal holding forces of the Luxalp electromagnets are guaranteed thanks to the mild steel polar plates.
Luxalp offers different types of polar plates:
- Plate: polar plate without screw
- Threaded: polar plate with thread
- Rotated: polar plate with integrated screw and shock-absorber
Our electromagnets and polar plates can be adapted specifically to your needs: see our customized solutions.
| Reference | Type | Dimensions Ø x Height (mm) | Fixation | Weight |
|---|---|---|---|---|

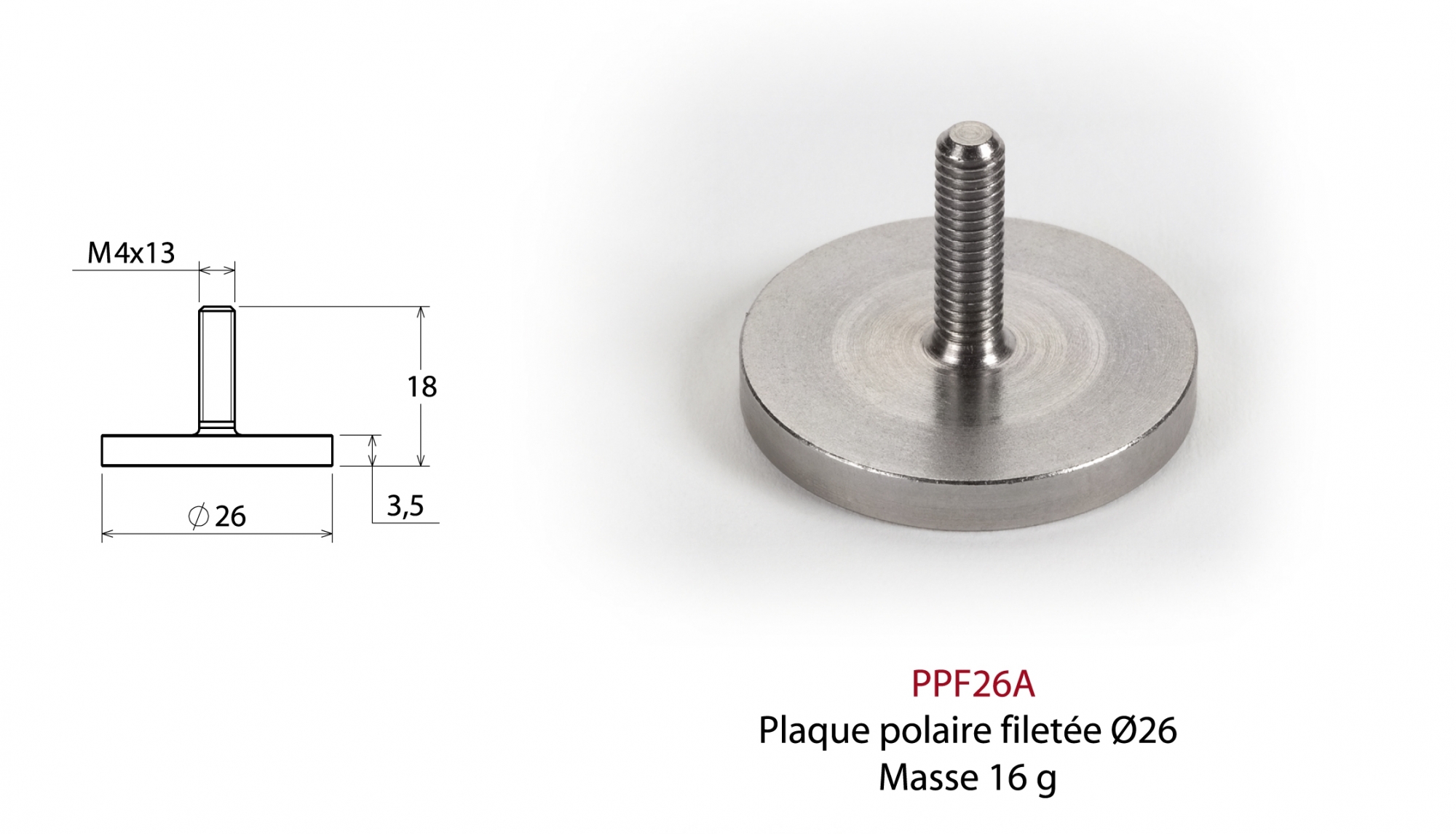

| PPF26A | Threaded | 26 x 18 | M4 x 13 | 16 |

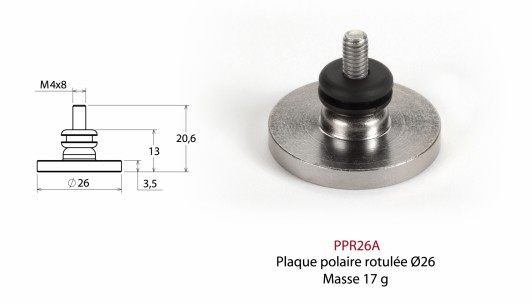

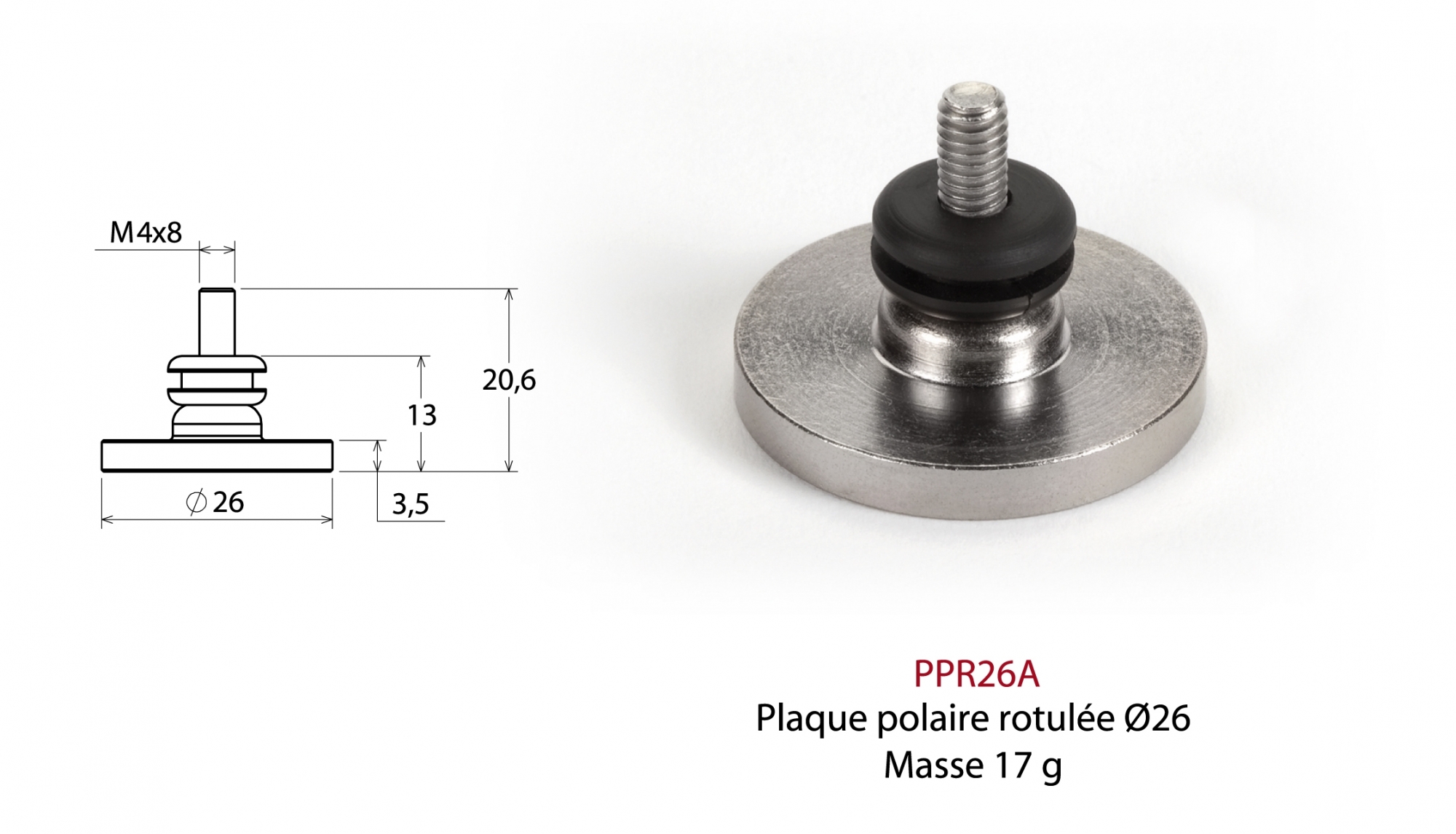

| PPR26A | Rotated | 26 x 20.6 | M4 x 8 | 17 |

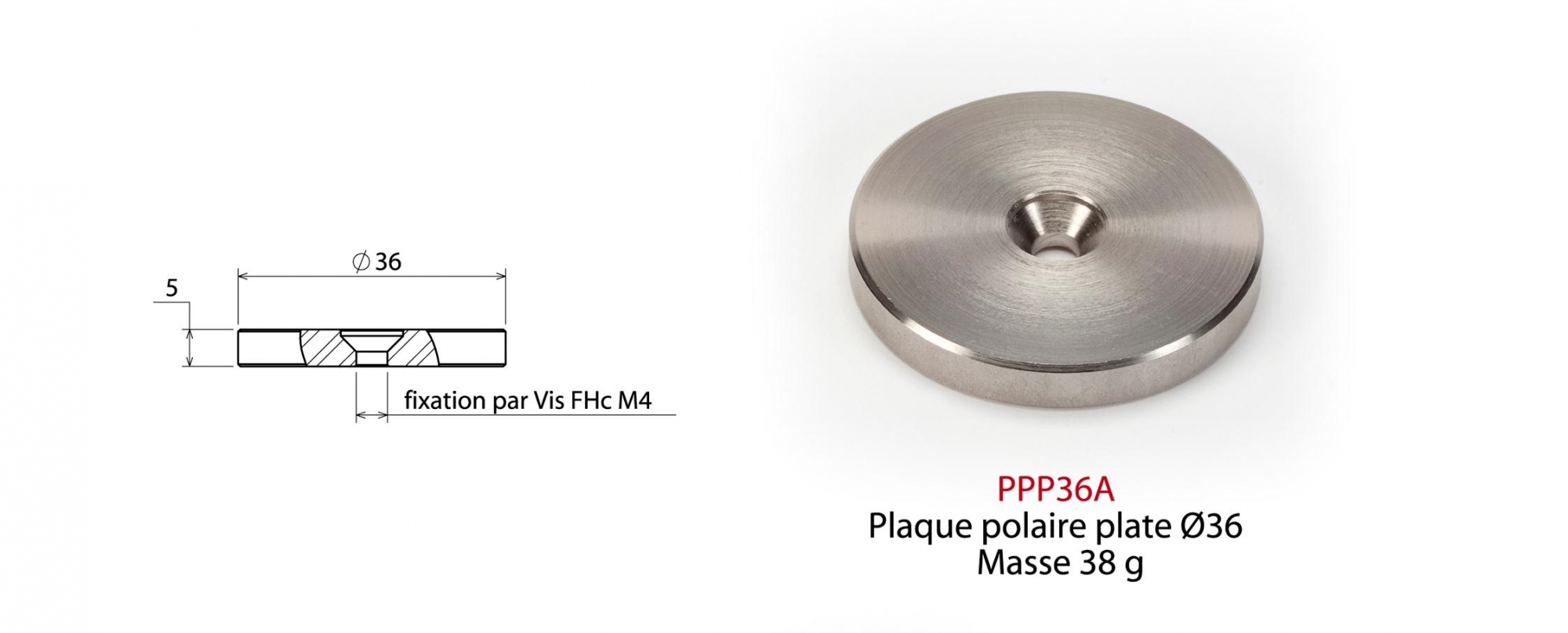

| PPP36A | Plate | 36 x 5 | by screw FHc M4 | 38 |

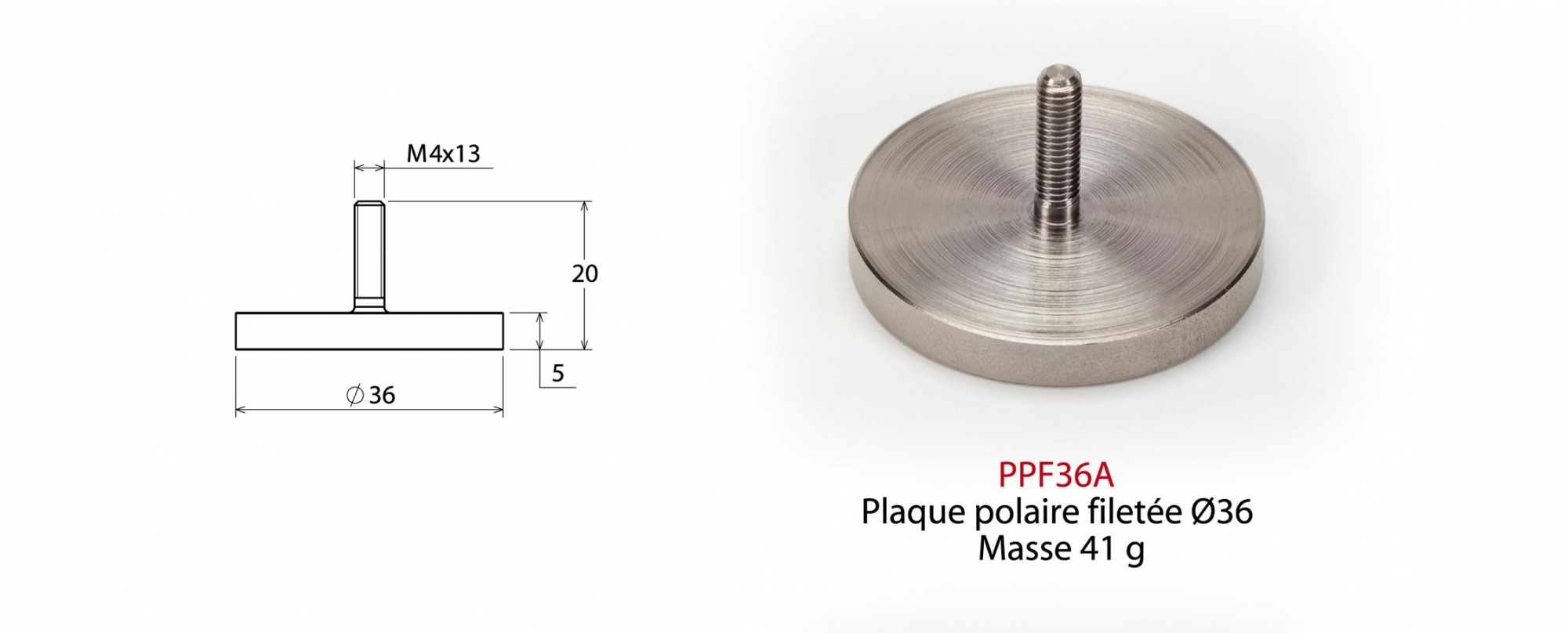

| PPF36A | Threaded | 36 x 20 | M4 x 13 | 41 |

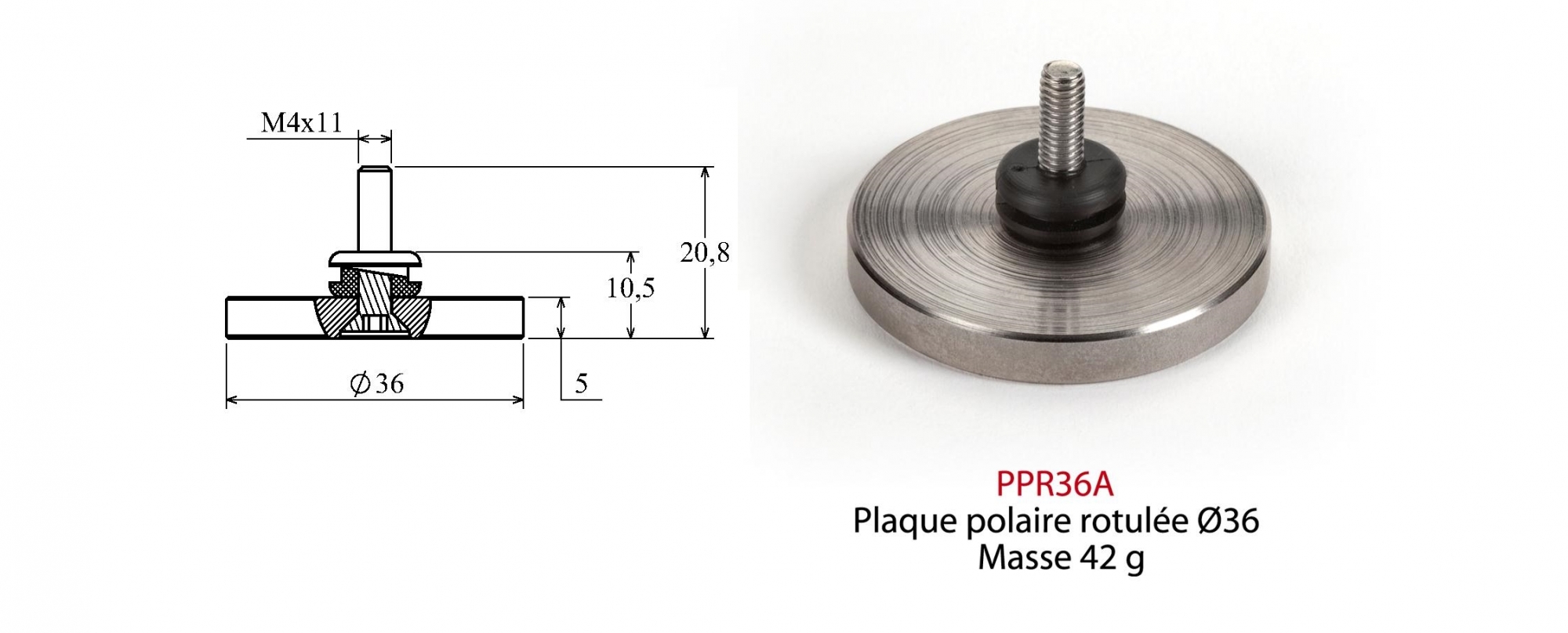

| PPR36A | Rotated | 20.8 x 36 | M4 x 8 | 42 |

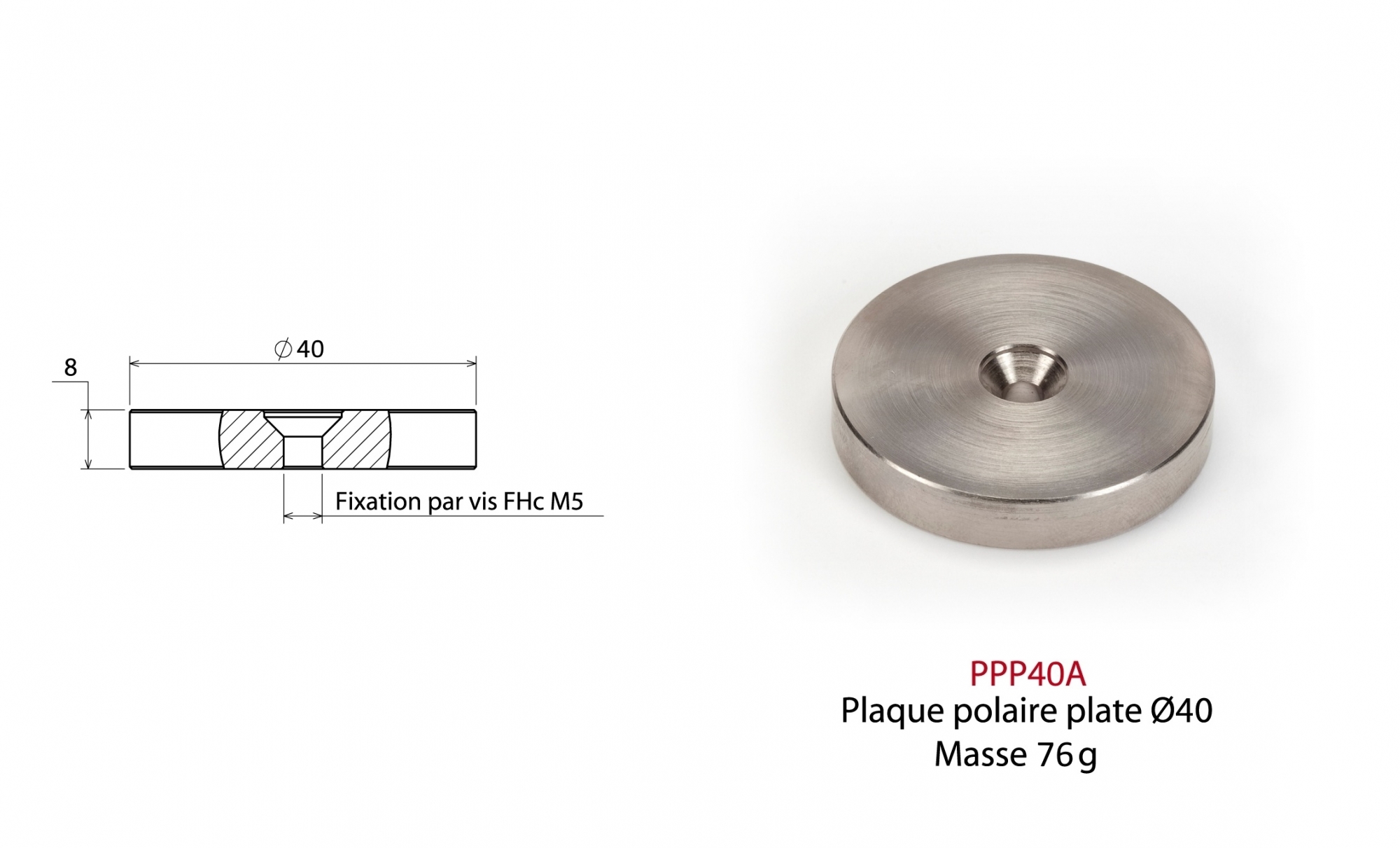

| PPP40A | Plate | 40 x 8 | by screw FHc M5 | 76 |

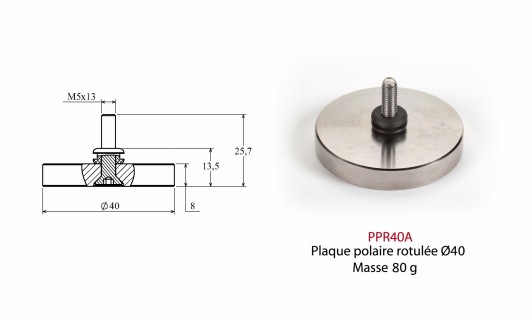

| PPR40A | Rotated | 40 x 8 | M5 x 13 | 79 |

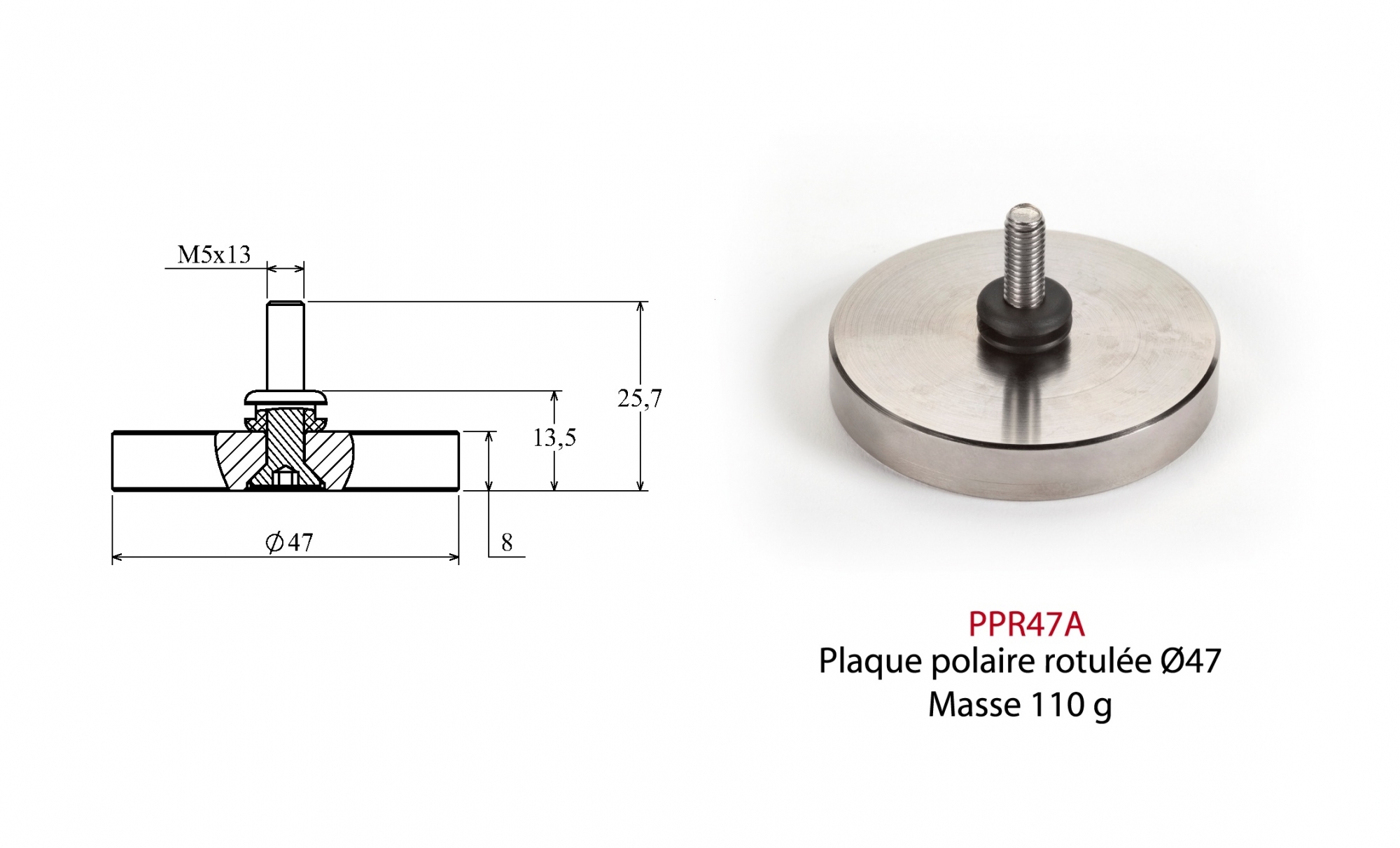

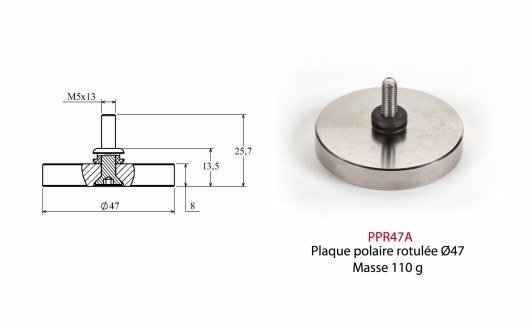

| PPR47A | Rotated | 47 x 25.7 | M5 x 13 | 110 |

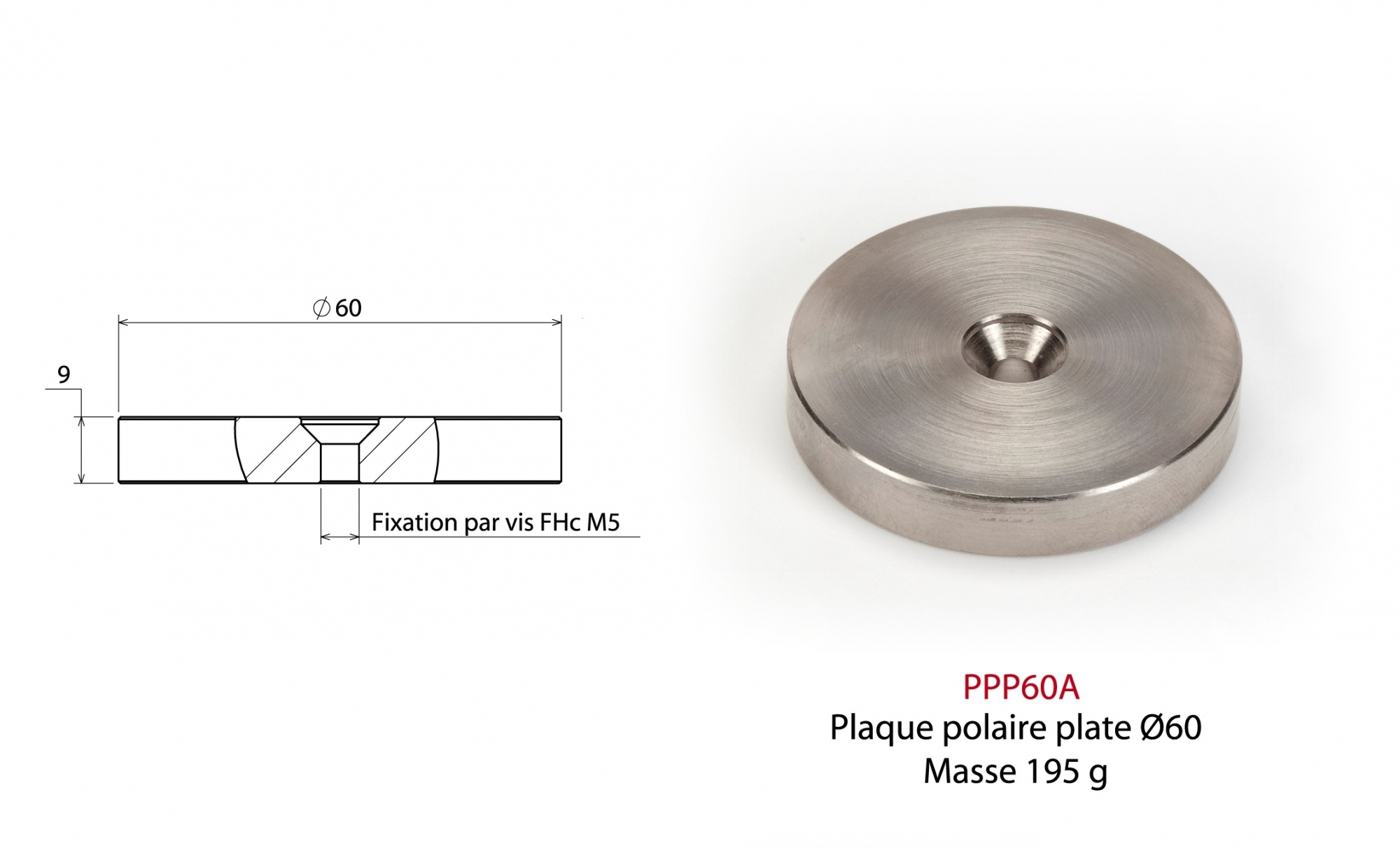

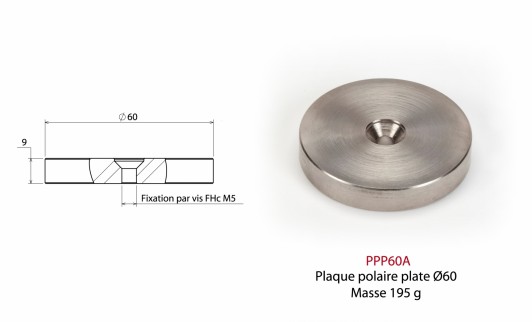

| PPP60A | Plate | 60 x 9 | by screw FHc M5 | 195 |

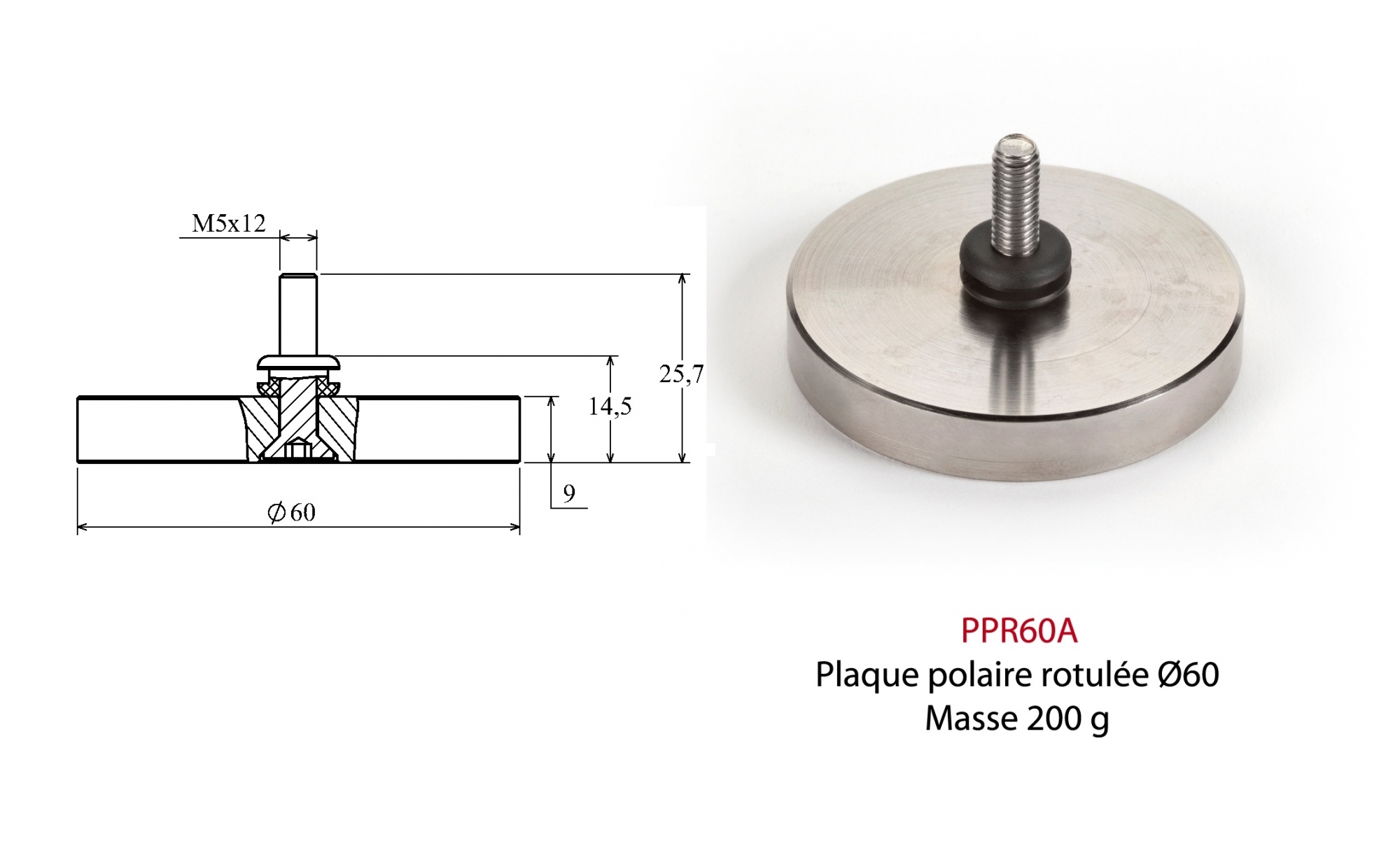

| PPR60A | Rotated | 60 x 25.7 | M5 x 12 | 200 |

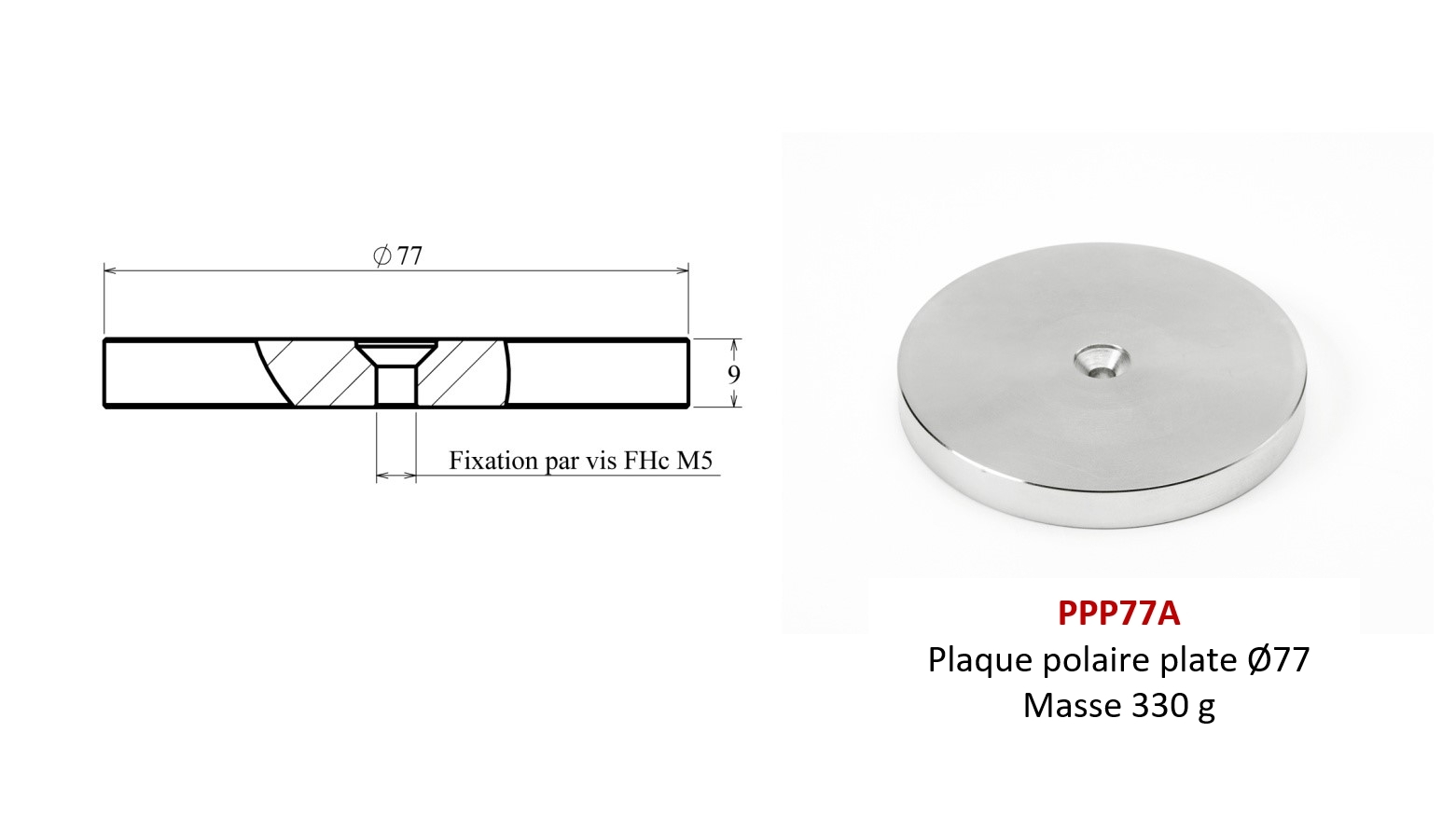

| PPP77A | Plate | 77 x 9 | by screw FHc M5 | 330 |

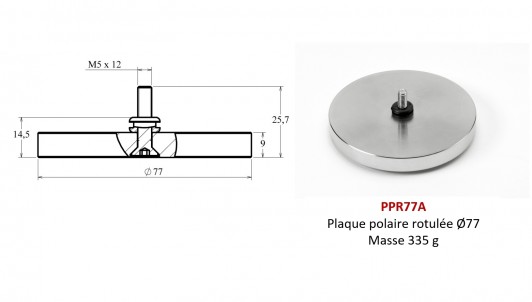

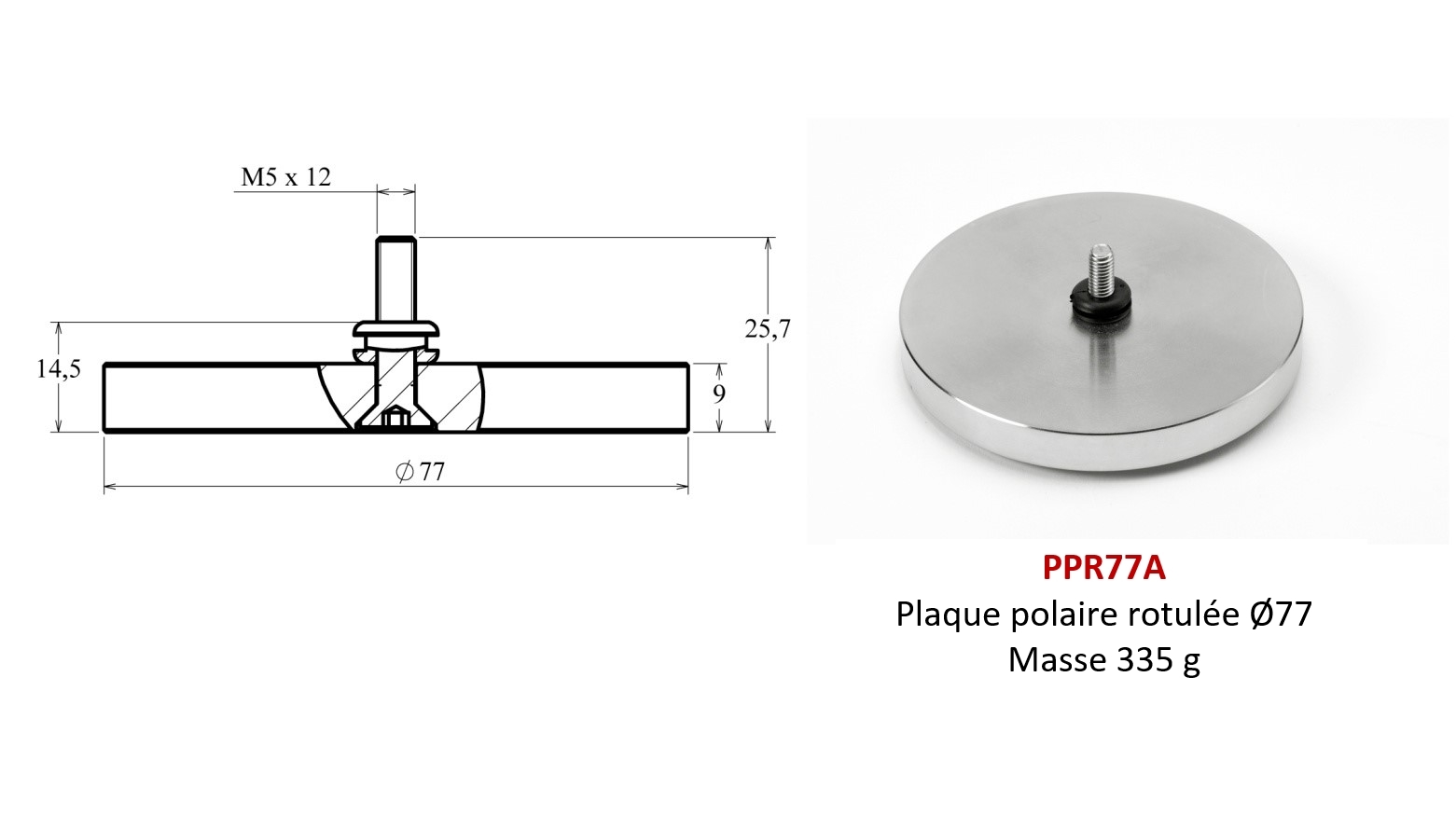

| PPR77A | Rotated | 77 x 25.7 | M5 x 12 | 335 |
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
